Below you will find a brief overview of the available models within the 100-800 series and the corresponding features. We are always happy to tell you more about the possibilities of these mixers within your sector. For more information and/or free advice for your installation: please contact us here!

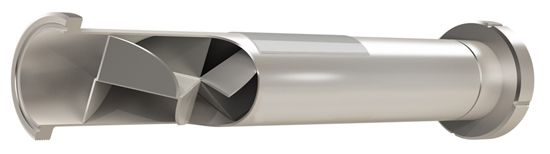

Statische-Menger-smal
Benefits of the 100-800 series
Advantages
High mixing efficiency.
No moving parts = no maintenance.
Easy installation.
No drive = energy saving.
Minimum installation space.
Available in all dimensions.
Available in any type of material according to customer specifications.
Static Mixer | Series 110/150

Element type: STT, STS, STL and STM
Area of application: food, oil and gas industry, petrochemicals, pulp and paper production. General design in steel/special, with fixed and/or removable elements and a standard finish. Available with heating-/cooling jackets and injectors-/connection points.

Static Mixer | Series 200

Element type: STT and STS
Area of application: food, pharmaceutical and soft drink industry, breweries. Hygienic design in polished stainless steel with removable elements, in a custom finish. Designed for CIP, available in IDF, RJT, DIN and with metal end connections. Injectors, heating-/cooling jackets are also available.

Static Mixer | Series 300

Element type: STS
Application: CPI, water treatment, petrochemical and chemical industry. Corrosion-proof design with removable elements in full PTFE, carbon/stainless steel housing or entirely made of PTFE. Available with PTFE/PFA injectors and heating-/cooling jackets.

Static Mixer | Series 400

Element type: STS
Application area: water and wastewater treatment, bathing water CPI. uPVC, PP and HDPE design in a practical corrosion-resistant version, with fixed elements in a housing with a flange or thread connection, complete with injectors/connection points.

Static Mixer | Series 500/550

Element type: STM
Application area: distillation, waste water and drinking water treatment, CPI. Large diameters (> 250 mm) designed in fiberglass-reinforced plastic with fixed elements, fitted with flange connections and possibly injectors/connection points.

Static Mixer | Series 600/650

Element type: STL
Area of application: waste water and drinking water treatment, distillation. Large diameters (250-3,000 mm) standard design in steel/stainless steel, with an epoxy finish and solid elements. Equipped with flat flanges and injectors/connection points.

Static Mixer | Series 700

Element type: STT and STS.
Area of application: manufacture of plastic fibers/polymers and the food industry. Special mixers with a high-quality surface finish. Welded elements, suitable for high temperatures and pressures, polymer production, thermal leveling and extrusion at melting temperatures.

Static Mixer | Series 800/850

Element type: STT, STS, STL and STM.
Area of application: oil and gas industry, petrochemical industry, CPI and the food and pharmaceutical industry.

In addition to the 100-800 Series, Entec also has other types of static mixers in its range, so that we can always meet your demand.
Click here for an overview of the static mixers.
