ENTEC® Dynamic mixer OMATS-Series

Image is not available

Very powerful and large - Up to Ø 8000 mm. Suitable for non-Newtonian liquids up to 950 mPa · s.

Very powerful and large - Up to Ø 8000 mm. Suitable for non-Newtonian liquids up to 950 mPa · s.

Very powerful and large - Up to Ø 8000 mm. Suitable for non-Newtonian liquids up to 950 mPa · s.

Header Dynamische Mixers - OMATS-Series
Shadow

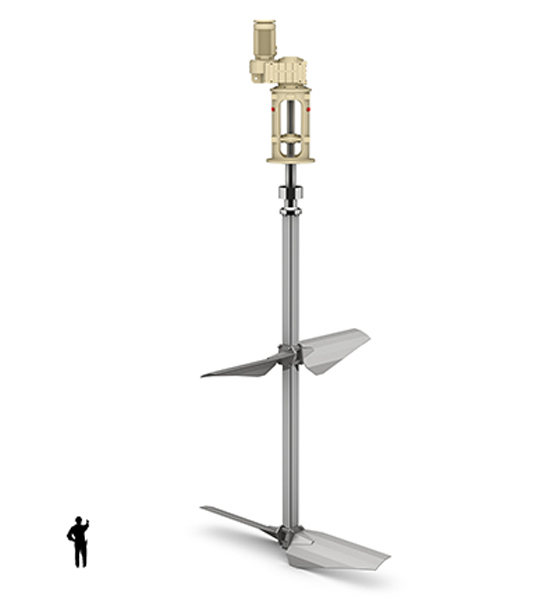

ENTEC® dynamic mixer OMATS-Series

Individually designed and manufactured to meet the process requirements of the customer. Very powerful and very large (Ø 8000 mm).
Also suitable for non-Newtonian liquids, up to 950 mPa · s.

Power range:0,09 - 300 kW.
Drive:Motor gearbox, direct drive, belt drive, pneumatic or hydraulic drive.
Mounting:IEC motor flange, mounting plate, welded stand or cast iron stand
Drive-shaft:Lengths up to 30 meters (free hanging) / Round shafts Ø8 - Ø300 mm / Square profile shafts up to 300 × 300 mm.
Mixing bladePropeller with two, three or four blades / Size and type depend on the process / diameter Ø75 - Ø8000 mm.
Optional:Bottom bearing / Different types of steel and coatings / ATEX motor.
Dynamic Mixers – OMATS-Series



In addition to the LVB Series, Entec International also has other different types of dynamic mixers in the range, so that we can always meet your demand.
Click here for an overview of the dynamic mixers.
